OEM RIFLESCOPE PLATFORMS
1-8x28
Versatile 1-8× optical platform available in FFP or SFP configurations. Designed for a wide field of view and customizable with customer-specific reticles, turrets, illumination, finishes, and branding.
3-18x50
Versatile 6× zoom optical platform combining up to 97% light transmission with a lightweight configuration under 20 oz. Designed for hunting applications where optical performance and reduced weight are priorities.
1-10x24
First-focal-plane 1-10× optical platform combining a wide field of view. Suitable for hunting, tactical, and sporting applications, with customizable reticle, turret, illumination, finish, and branding options.
4-32x56 ED
High-magnification 8× optical platform featuring ED glass and up to 97% light transmission. Designed for long-range and precision applications with customizable reticles, turrets, illumination, finishes, and branding.
OEM OPTICAL SYSTEMS AVAILABLE FOR CUSTOMIZATION
The platforms below represent a selection of JOL's available optical systems. Magnification range, objective size, focal plane, reticle, turret system, illumination, and other features can be configured to meet your product requirements. Additional optical systems are available upon request.
Model | Tube Diameter | Field of view (ft @ 100y) | Eye Relief (inch) | Adjustment Travel (MOA) | Turret type | Side parallax (Y/N) | Fast focus eyepiece (Y/N) | Focal Plane |
|---|---|---|---|---|---|---|---|---|
1-10x24 | 34mm | 105-10.5 | 3.54 | 140 | Capped | N | Y | 1st/2nd |
2-12x24 | 30 or 34mm | 55.1-9.4 | 3.54 | 100 | Exposed or Capped | Y | Y | 1st/2nd |
6-24x56 | 30mm | 21-5.25 | 3.07 | 60 | Exposed | Y | Y | 1st/2nd |
8-32x56 | 34mm | 15.7-3.93 | 3.07 | 50 | Exposed | Y | Y | 2nd |
10-40x56 | 30mm | 12.57-3.14 | 3.07 | 40 | Exposed | Y | Y | 2nd |
4-16X50 | 30mm | 31.4-7.85 | 3.07 | 60 | Exposed | Y | Y | 2nd |
2-10x44 | 30mm | 55.9-11.9 | 3.74 | 80 | Exposed | Y | Y | 2nd |
1.5-8x32 | 30mm | 77.9-14.5 | 3.74 | 80 | Capped | N | Y | 2nd |
4-20x50 | 34mm | 28.82-5.76 | 3.74 | 60 | Exposed | Y | Y | 2nd |
5-25x56 | 34mm | 22.5-4.5 | 3.74 | 60 | Exposed | Y | Y | 1st/2nd |
1-5X24 | 30mm | 114.5-22.6 | 3.74 | 120 | Capped | N | Y | 2nd |
3-15x50 | 30mm | 38.3-7.6 | 3.74 | 70 | Exposed | Y | Y | 2nd |
4-20x50 | 30mm | 28.82-5.76 | 3.74 | 60 | Exposed | Y | Y | 2nd |
1-6x24 | 34mm | 103-17 | 3.54 | 80 | Capped | N | Y | 2nd |
3-18x50 | 34mm | 33.2-5.5 | 3.54 | 60 | Exposed | Y | Y | 1st/2nd |
4-32x56 | 34mm | 27.5-3.46 | 3.54 | 60 | Exposed | Y | Y | 1st/2nd |
3-24x56 | 34mm | 36.7-4.58 | 3.5 | 80 | Exposed | Y | Y | 1st/2nd |
1-8x28 | 34mm | 105.8-13.1 | 3.62 | 140 | Exposed | N | Y | 1st/2nd |

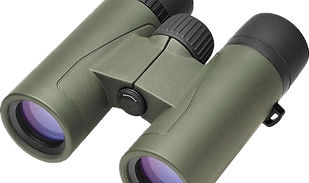

BINOCULARS
